Name: MPF12-H
Brand: Neutrik Americas, Inc.
SKU: 6473-MPF12-H-ND
Price: 30.7219 EUR
Availability: InStock

New at DigiKey

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

MPF12-H
DigiKey Part Number	6473-MPF12-H-ND
Manufacturer	Neutrik Americas, Inc.
Manufacturer Product Number	MPF12-H
Description	RECEPTACLE - MINICON FEMALE - PC
Manufacturer Standard Lead Time	14 Weeks
Customer Reference
Detailed Description	12 Position Circular Connector Receptacle, Female Sockets Solder

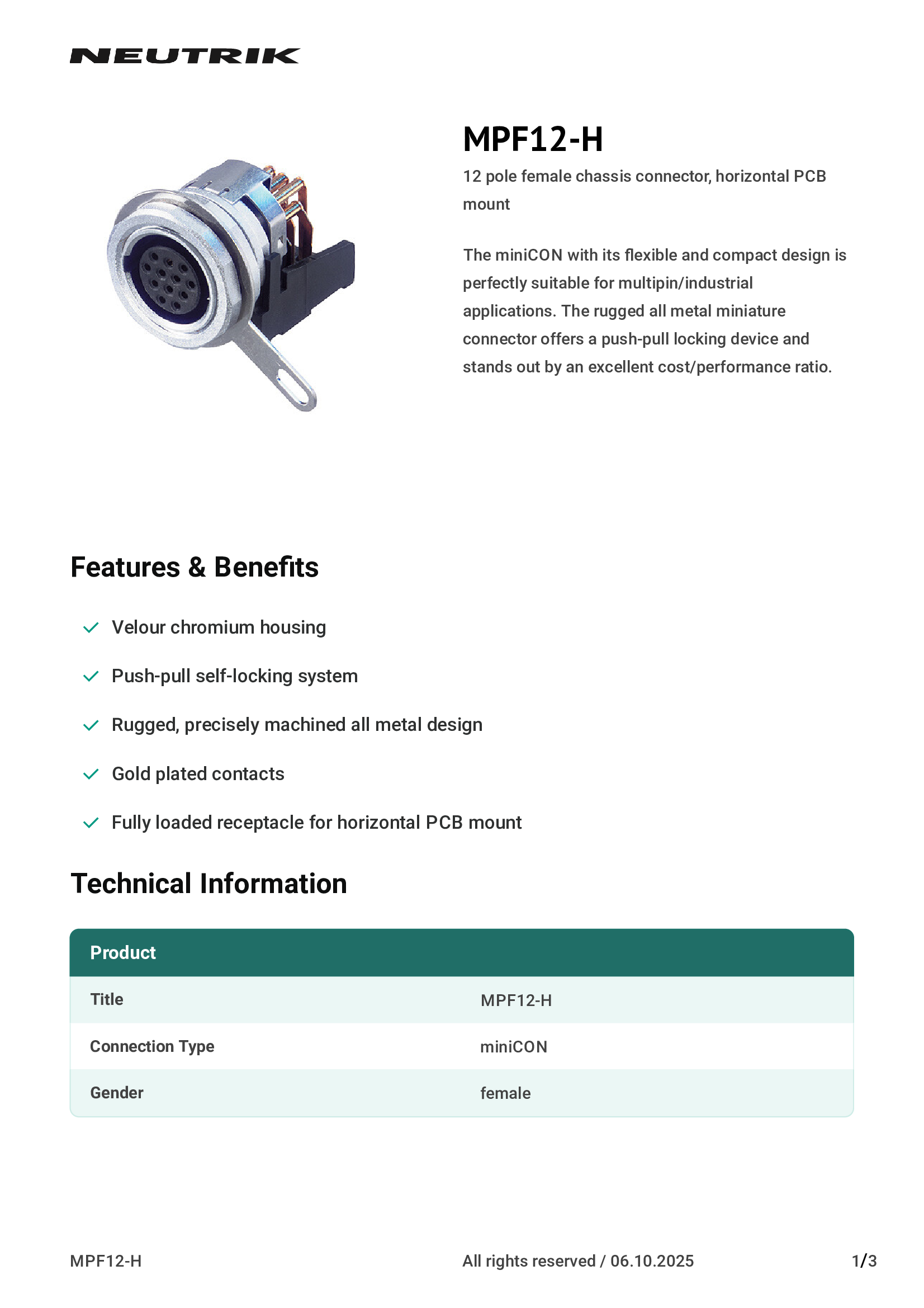

Datasheet	Datasheet

Product Attributes

Filter Similar Products

Show Empty Attributes

Category Connectors, Interconnects Circular Connectors Circular Connector Assemblies	Shell Material Zinc Die Cast
Mfr Neutrik Americas, Inc.	Contact Finish - Mating Gold
Series miniCON®	Color Silver
Packaging Box	Ingress Protection IPX5 - Waterproof
Part Status Active	Material Flammability Rating UL94 V-0
Connector Type Receptacle, Female Sockets	Features Ground
Number of Positions 12	Shielding Unshielded
Shell Size - Insert M14-12	Current Rating (Amps) 3A
Mounting Type Panel Mount, Through Hole, Right Angle	Voltage Rating 50V
Mounting Feature Bulkhead - Front Side Nut	Operating Temperature -30°C ~ 80°C
Termination Solder	Contact Material Bronze
Fastening Type Threaded	Contact Finish Thickness - Mating 7.87µin (0.200µm)
Orientation N (Normal)	Insert Material Polyamide (PA66), Nylon 6/6
Primary Material Metal

Report Product Information Error

Documents & Media

Environmental & Export Classifications

Additional Resources

In-Stock: 98

Check for Additional Incoming Stock

Quantity

All prices are in EUR

Box

Manufacturers Standard Package

Unit Price without VAT:	€ 25,39000
Unit Price with VAT:	€ 30,72190

MPF12-H
