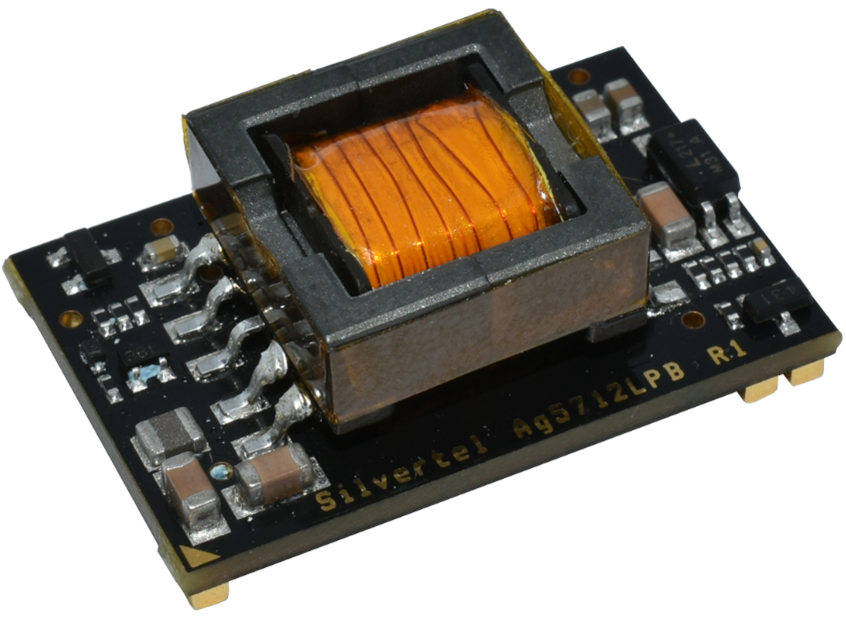

            Ag5700-LPB Miniature Surface Mount IEEE802.3at PoE PD Module
                    Silvertel Ag5700-LPB 30 W Power over Ethernet (PoE) modules are RoHS and REACH compliant small IEEE802.3at PoE PDs


The Silvertel Ag5700-LPB series Power over Ethernet (PoE+) IEEE802.3at PD modules feature a low-profile surface-mount and miniature footprint. The series is designed with a small form factor, ease of use, and implementation for designers at the forefront. The Ag5712-LPB and Ag5724-LPB modules extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE802.3 PoE standard, with full backward compatibility with the IEEE802.3bt, IEEE802.3at, and IEEE802.3af amendments.

The Ag5700-LPB is pre-configured as a Type 2 Class 4 device, allowing the module to draw up to 30 W of power from the PSE, with nominal output voltages of 12 V or 24 V available.

The high-efficiency DC/DC converter can achieve up to 89% efficiency and operates over a wide input voltage range with low ripple and noise output. It also has built-in output overload, output short-circuit, and overtemperature protection and provides a 1,500 V_DC (input to output) isolation barrier.

All Silvertel products are designed and manufactured in the UK to the ISO9001 standard and are fully compliant with RoHS and REACH Directives.

Features

30 W (IEEE802.3at) output power
Designed and manufactured in the UK
Low-profile SMT package [33 mm (L) x 22 mm (W) x 13 mm (H)]
12 V and 24 V output variants available
Low output ripple and noise
Overload, short-circuit, and thermal protection
Adjustable output voltage

Industrial temperature range
Class 4 IEEE802.3 PD
IEEE802.3at, IEEE802.3af compliant
1,500 V_DC isolation (input to output)
Provides ease of use and implementation
Rapid time to market

Applications

IoT/IIoT connected devices
Smart conference systems
Smart speaker systems
Smart office systems
Smart factory systems
Audio-visual applications
Digital signage
Digital lighting
Wireless access points (WAPs)

Door entry systems and video doorbell systems
Access controls and smart locks
Industrial and IoT sensors
CCTV security cameras
Point-of-sale terminals
Smart security systems
IP cameras
IP phones
Call systems
